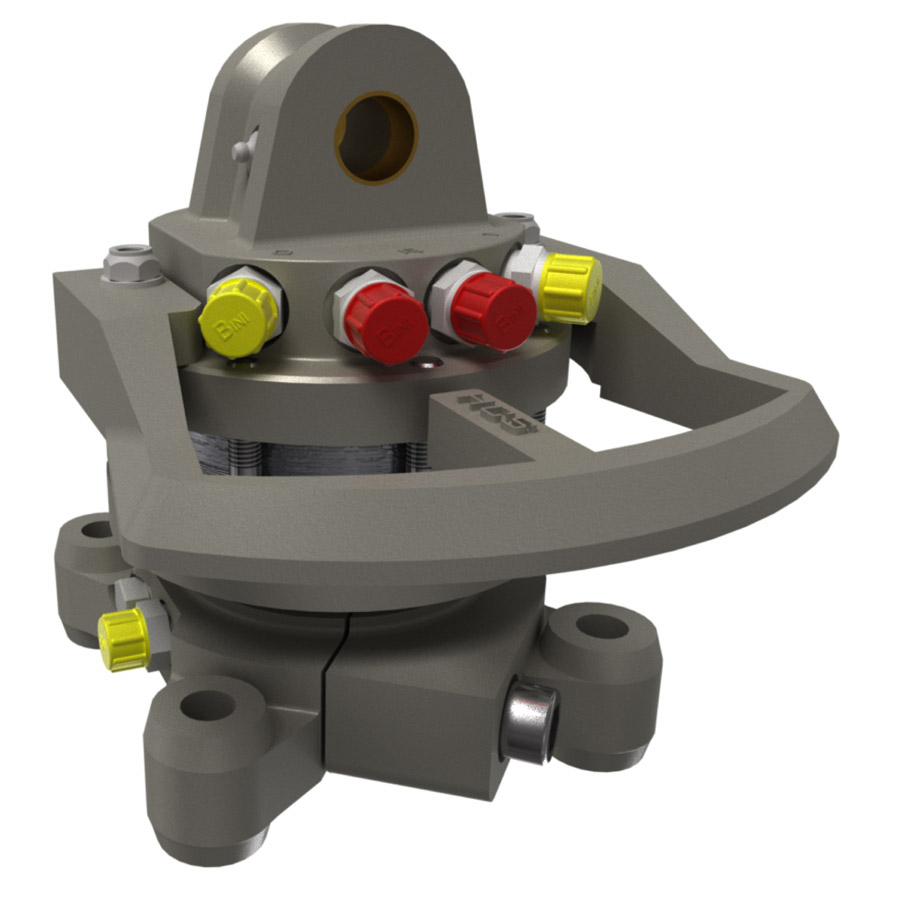

The hydraulic rotator for log grapple BINI HCS T.2,5 F 360° was designed to achieve a torque of 760 Nm at a pressure of 200 bar (20 MPa) and withstand an axial load of 25 kN (2500 kg). The rotation is bidirectional continuous and unlimited.
This hydraulic rotator is provided with a flange integral with the output shaft to improve and facilitate its fastening on the clamp, thus reducing the axial dimensions. This feature makes it possible to obtain a very compact solution as the rotator is mounted directly on the log grapple through 4 M16 screws. From the opposite side it is possible to couple to the machine boom through a pin and link of our production.
The hydraulic rotator BINI HCS T.2,5 360 ° F is ideal for installation on truck cranes, loaders and hydraulic excavators between 20 and 30 quintals.
The accessories available for this rotator are: link, pins and it can also be supplied together with the log grapple with 1050 mm opening.
